Package include:

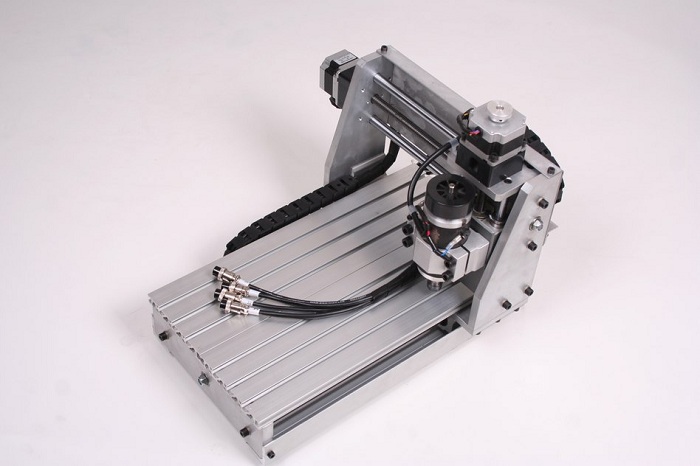

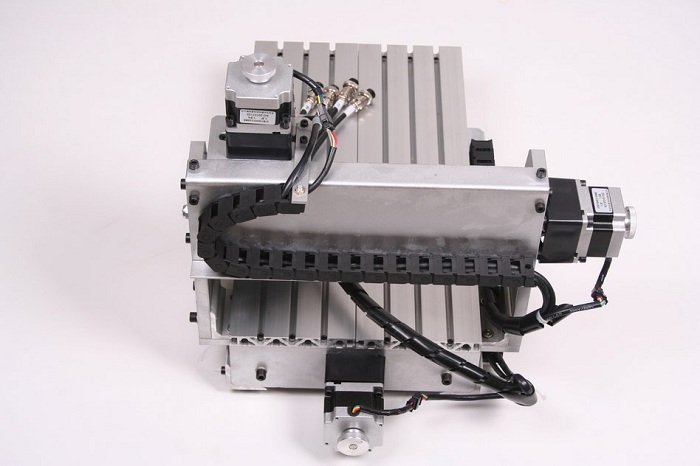

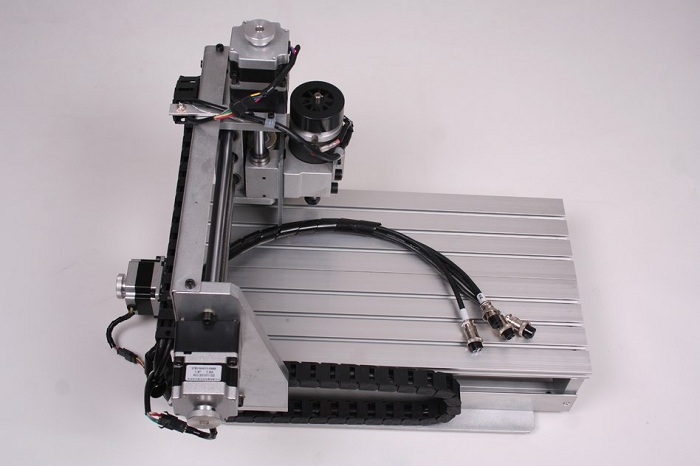

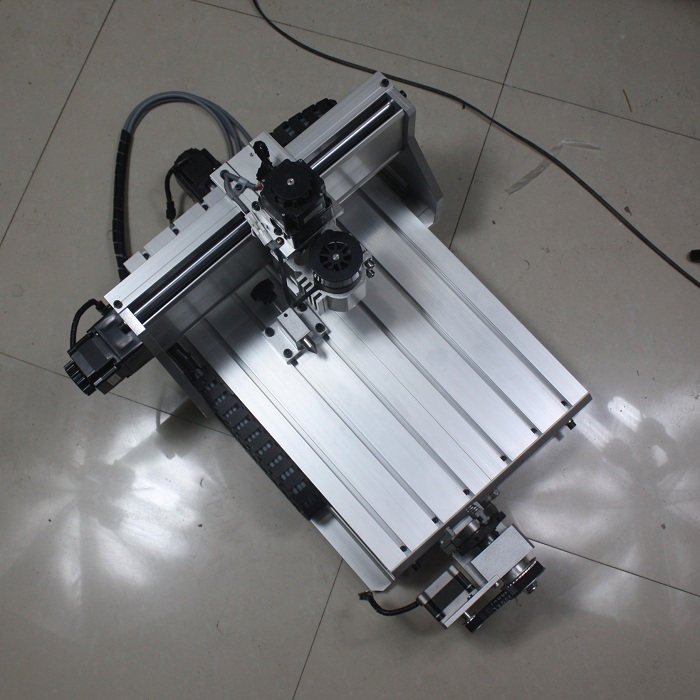

• 1 x CNC Router machine

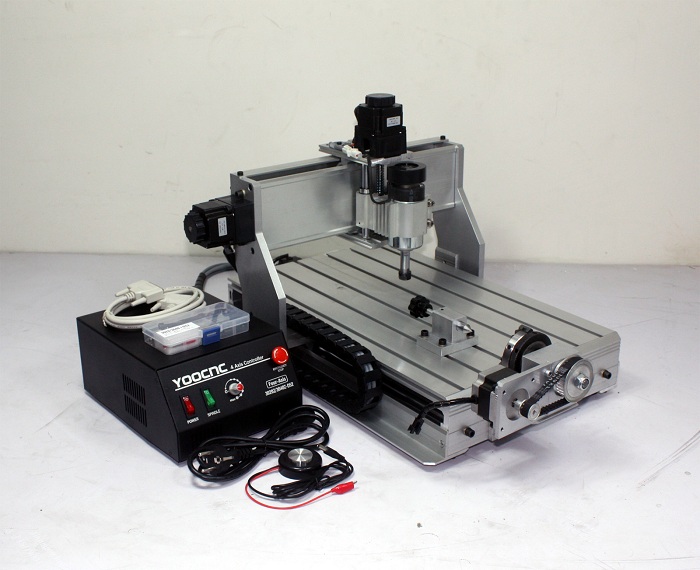

• 1 x Control box
• 1 x Parallel cable
• 1 x Power cable(US,UK,EU,AU plug)
• 1 x Tool box and tools
• 3 x Aixs stepper motors

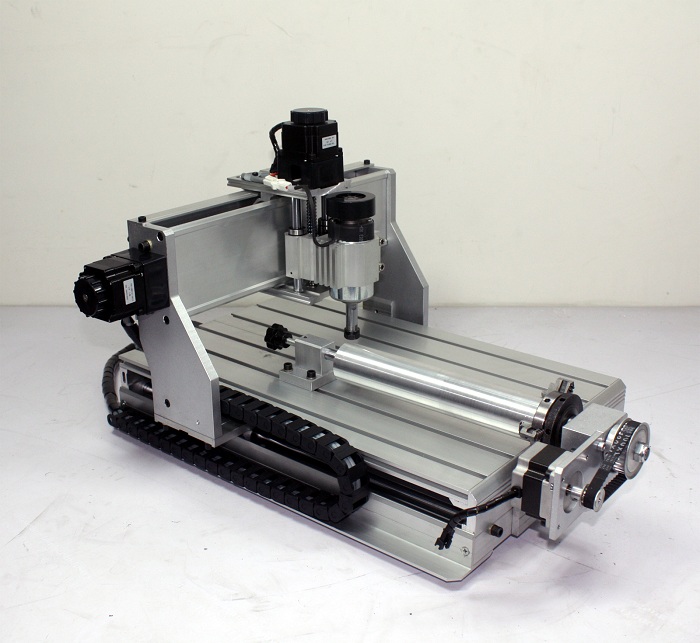

• 1 x 4th axis with tailstock
• English Mach3 setting in control box and 4th axis setting will send by email.

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

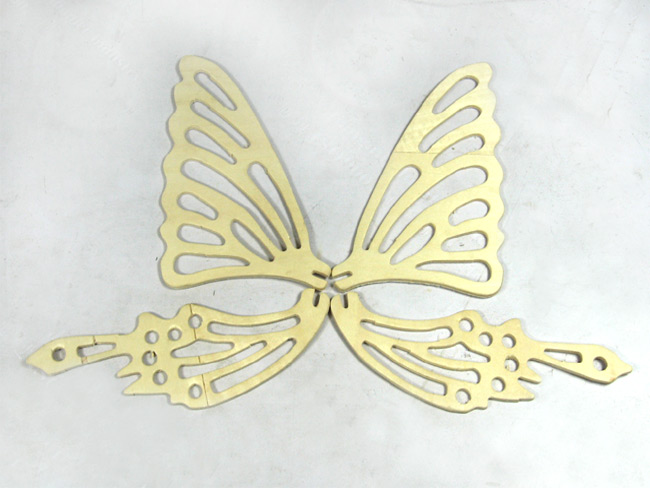

Engrave almost anything on almost any surface

X Y and Z axis carving make more precise and and three-dimensional effect.

Cover plates reducing pollution for the screws and shafts.

More steady and strong equiped with aluminum alloy frame materials.

Reinforced and thickened machine body make transportation absolutely to be safer and longer life time

Technical Parameters

Machine Dimensions: 610×485×395mm

Rack material:6061 and 6063 hard aluminium alloy(the unique and dedicated mold extrusion profiles)

Engraving Area:390×285mm

Z-axis Stroke:55mm,Engraving depth depends on the length of the tool edge

Max workpiece thickness:<=70mm

Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)

Transmission unit:SFU1204 ball screw

Spindle motor:New DC spindle motor,230W/50V.11000rpm,lower noise,high precision,Support Mach3 control

Collet: ER11,1/8”(3.175mm)

Stepping motor and controller: two-phase 57/1.8A ,8 segments driver

Maximum speed: 4000mm/min

Engraving speed: 300-3000mm/min

Repeat positioning Accuracy: 0.05mm

Interface:Parallel port

Software Compatability:Mach3/Emc2,(Type3,Wentai, ArtCAM,Coppercam)

Command code: G code/.nc/.ncc/.tab/.txt

Machine weight: 28kg(including packaging)

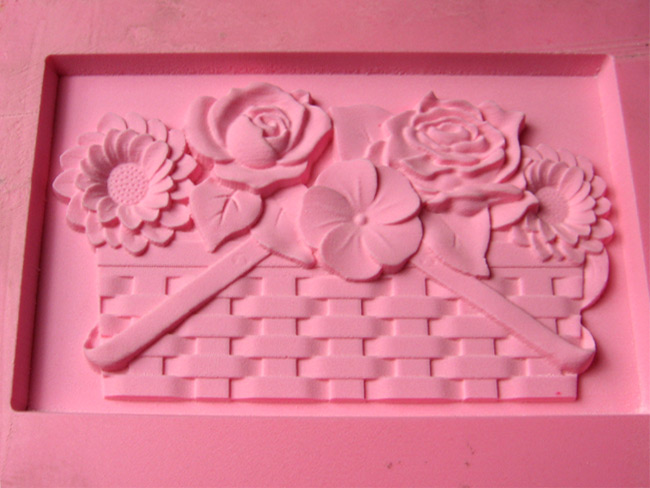

Main application: engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working,but not milling working

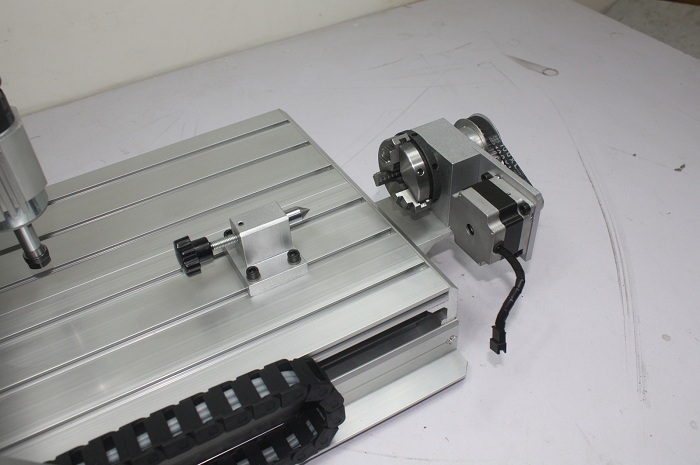

The 4th axis:

Clamp diameter:50mm

Ratio:1:3

1.same size stepper motor but more torque,and the cables use more quality cnc flexible type

2.the power supply use ring transformer,more anti-interference and use more powerful controller

3.New 11000rpm spindle motor,and can turn and off the spindle by mach3 and PWM spindle speed control.more stable long working time

4.3 axis SFU1204 ball screw

5.95% aluminium material produced by mould extrusion forming,more beautiful and quality

6.Add the Z axis tool setting function,let user feel more better
